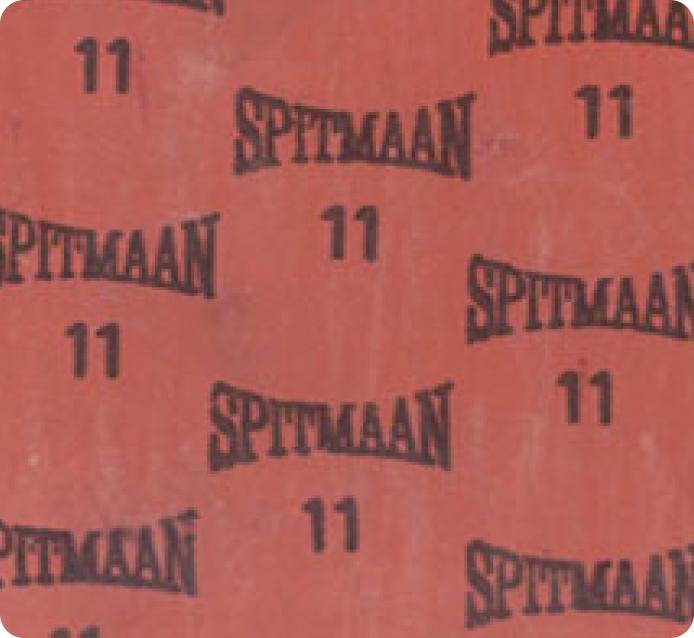

Style 11 M
These Jointings possess a consistently uniform and solid construction, providing a resilient quality product with a highly dependable performance. Its adaptability to various sealing requirements makes it the most economical choice for sheet packing among Plant Engineers and maintenance personnel.
Technical Description
Compliance: IS 2712 Grade W/3
Identification Colours: (Non-Metallic) Red, Black Graphited ; (Metallic) With special metallic Reinforcement to enhance strength and stability.
Suitable for: Gasketing material for general purpose applications in all industries with less severe working conditions of temperature and Pressure.
Appropriate Medium: Water, Steam, Air, Gases and some Alkaline Chemicals (Low service conditions).
Specification
| Property | Metallic |
|---|---|
| Continuous Temperature | 400 ºC |
| Recommended Maximum Pressure | 40 kg/cm2 |
| Density | 2.40 gm/cc |
| Tensile Strength | 90 kg/cm2 |
| Compressibility | 12% |
| Recovery | 45% |
| Ignition Loss | 20% |
