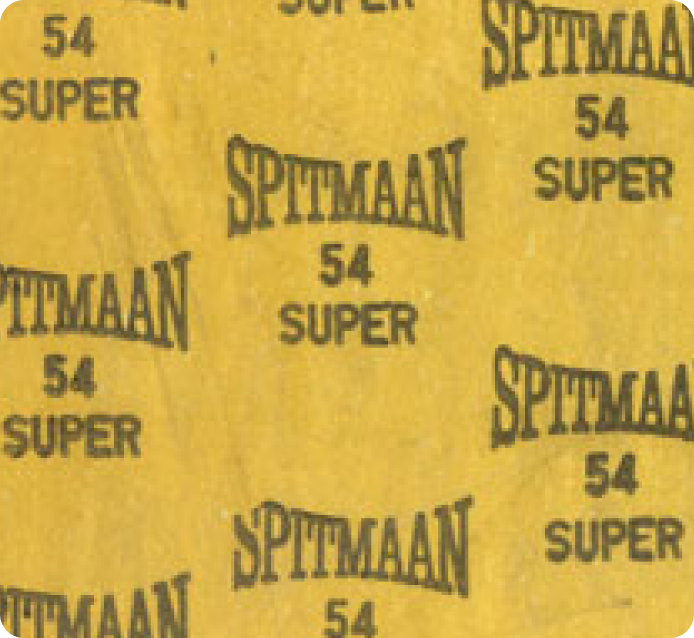

Style 54 M
Produced from superior quality Chrysotile Asbestos Fiber and raw materials that are thoroughly blended with heat-resistant rubber and its compounds using a special process to ensure optimal stability and endurance against high pressures and temperatures.
Technical Description
Compliance: IS 2712 Grade W/1
Identification Colours: (Non-Metallic) Yellow-Grey / Black Graphited ; (Metallic) With special metallic Reinforcement to enhance strength and stability.
Suitable for: Marine Engines, Electricity generating sets, IC Engines, Compressors and Chemical Plants
Appropriate Medium: Saturated Steam, Oxygen, Petroleum Distillates, Hot Ouls, Fuels, Hydrocarbons, Lyes etc. Motor Oil, Transmission and Hydraulic Fluids, Steam, Alkalies, Antifreeze and Refrigeration Oils. (High service conditions)
Specification
| Property | Metallic |
|---|---|
| Continuous Temperature | 600 ºC |
| Recommended Maximum Pressure | 160 kg/cm2 |
| Density | 2.40 gm/cc |
| Tensile Strength | 280 kg/cm2 |
| Compressibility | 11% |
| Residual Stress | 30 Mpa |
| Recovery | 50% |
| Water Absorption | 7% |
| Ignition Loss | 22% |
